    Reliable H3c Lscm2mpus06as8 Control Switching Module for Efficient Operations

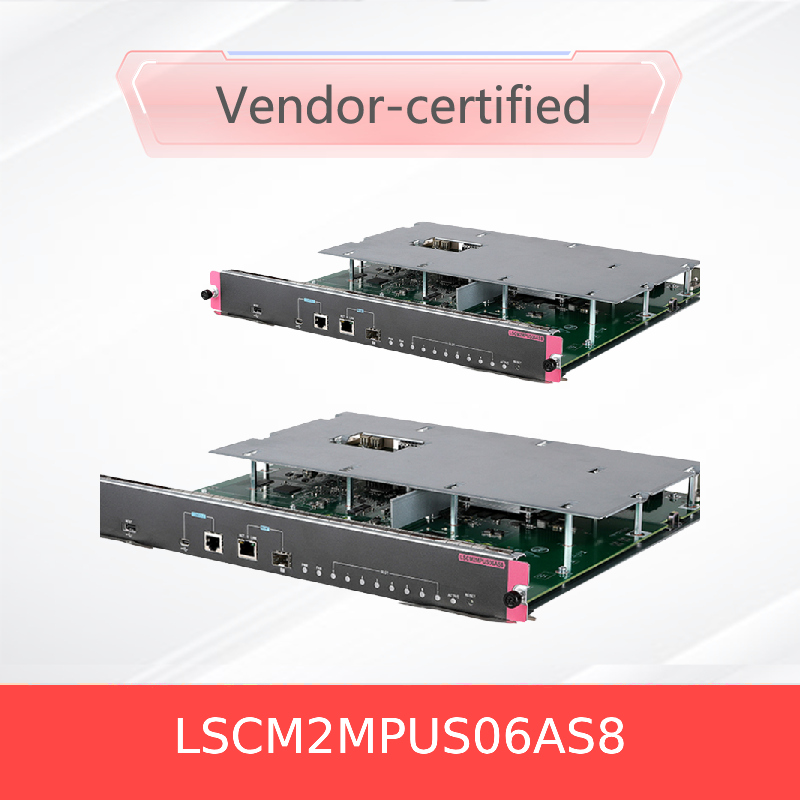

    Main Control Switch Module - LSCM2MPUS06AS8
    1. Board Identification

    The upper right corner of the front panel is marked with silkscreen LSCM2MPUS06AS8 to identify this board.

    2 Board Introduction
    AttributesSpecifications
    Flash4GB
    BootROM4MB*2
    NVRAM1MB
    SDRAM2GB
    Size(H*W*D)45mm*399mm*355mm
    Board Power Consumption23W～31W
    Interface Type and Number
    • 1 Console port
    • 1 USB Console port
    • 2 network management ports (1 RJ-45 port and 1 SFP port)
    • 1 primary USB port
    Interface Transfer Rate
    • Console port: 9600bps–115200bps (9600bps by default)
    • USB console port: ≤115200bit/s, 9600bit/s by default
    • Network management port (RJ-45): 10/100/1000 Mbps, half-duplex/full-duplex
    • Network management port (SFP): 1000 Mbps
    Optional cables and maximum transmission distances
    • Console port: Asynchronous EIA/TIA-232 cable, transmission distance ≤ 15 m
    • USB console port: USB-AB cable, transmission distance ≤ 10 m
    • Network management port (RJ-45): Category 5 or higher twisted pair cable, transmission distance 100 m
    Compatible host typesS7006X

    Note:

    • The USB port does not support the use of a USB extension cable.
    • For information about compatible optical modules and cables, refer to the "H3C S7000X Series Switch Board and Optical Module Compatibility Table."
    • For information about compatible host software versions, refer to the software release notes.

    The 10/100/1000M electrical interface uses an RJ-45 connector.

    Figure 1 RJ-45 Connector Diagram

    RJ-45 Connector Diagram
    Pin Number10Base-T/100Base-TX/1000Base-T
    SignalFunction
    1MX_0+Transmitting/Receiving Data
    2MX_0-Transmitting/Receiving Data
    3MX_1+Transmitting/Receiving Data
    4MX_2+Transmitting/Receiving Data
    5MX_2-Transmitting/Receiving Data
    6MX_1-Transmitting/Receiving Data
    7MX_3+Transmitting/Receiving Data
    8MX_3-Transmitting/Receiving Data
