CommScope NETCONNECT Category 6A U/UTP Cable
Advanced Unshielded Cable for 10-Gigabit Network Infrastructure

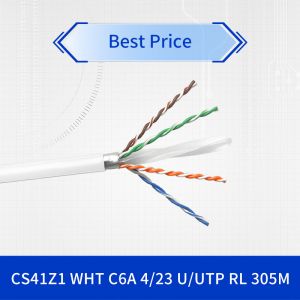

The CommScope CS41Z1 WHT C6A 4/23 U/UTP RL 305M represents the
pinnacle of unshielded cable technology, delivering Category 6A
performance for high-speed network environments. This premium UTP
cable combines enhanced bandwidth capabilities with superior
electrical characteristics to support 10-Gigabit Ethernet
applications. The white LSZH jacket and comprehensive standards
compliance make this network cable the ideal choice for
data-intensive installations where performance, safety, and
reliability are paramount.
- 10GBASE-T Ready: Supports 500 MHz bandwidth for 10-Gigabit Ethernet up to 100
meters
- Advanced Construction: 23 AWG solid copper conductors with optimized pair isolation
- Enhanced Safety: Low Smoke Zero Halogen jacket for reduced toxic emissions
- High-Power PoE: Compliant with IEEE 802.3bt (Type 4) for demanding Power over
Ethernet applications
- Global Certification: Meets ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA standards
Product Characteristics
- Category 6A U/UTP unshielded cable with 4-pair configuration
- 23 AWG solid bare copper conductors for superior signal
transmission
- White Low Smoke Zero Halogen (LSZH) jacket material
- Advanced isolator technology for minimized alien crosstalk
- 305-meter reel packaging for large-scale installations
- Extended frequency support up to 500 MHz
Technology & Standards Compliance
This Category 6A UTP cable incorporates cutting-edge manufacturing
techniques with comprehensive electrical testing to ensure
exceptional performance in high-density environments. The network
cable exceeds Category 6 specifications with enhanced alien
crosstalk performance and superior return loss characteristics.
Compliance with global standards includes ANSI/TIA-568.2-D, ISO/IEC
11801 Class EA, and environmental regulations such as RoHS,
REACH-SVHC, and China-ROHS requirements.
Working Principle
The Category 6A U/UTP cable operates using precisely engineered
twist ratios and advanced pair separation technology to maintain
signal integrity at high frequencies. The four individually twisted
pairs within the network cable employ varying twist rates that
minimize both internal and external crosstalk interference. This
UTP cable design utilizes balanced transmission principles where
electromagnetic interference affecting both conductors in a pair is
effectively canceled at the receiving end. The Category 6A cable
maintains consistent 100-ohm characteristic impedance with minimal
propagation delay for reliable 10-Gigabit Ethernet transmission.
Application Scenarios
This high-performance UTP cable is engineered for demanding network
environments including data centers, enterprise backbones,
healthcare imaging networks, educational institutions, and
financial trading floors. The Category 6A U/UTP cable is
specifically designed for 10GBASE-T installations where guaranteed
performance up to 100 meters is required. The network cable's
unshielded design makes it ideal for installations where grounding
complexity must be minimized while still achieving superior
performance in high-density cabling environments.
Technical Specifications
| Parameter | Specification |
|---|
| Cable Type | Category 6A U/UTP |
| Maximum Frequency | 500 MHz |
| Conductor Gauge | 23 AWG Solid Bare Copper |
| Jacket Color | White |
| Cable Length | 305 meters (1000 ft) |
| Characteristic Impedance | 100 ohm ±15 ohm |
| Propagation Delay | 536 ns/100m maximum |
Competitive Advantages
The CS41Z1 Category 6A UTP cable offers significant advantages
through its combination of enhanced bandwidth, superior alien
crosstalk performance, and simplified installation. Compared to
shielded alternatives, this UTP cable eliminates the complexity of
proper grounding while still delivering 10-Gigabit performance. The
network cable's advanced construction provides better alien
crosstalk performance than standard Category 6A cables, making it
ideal for high-density installations. The 23 AWG conductor size
ensures lower DC resistance for improved Power over Ethernet
efficiency over longer distances.
Service & Support
CommScope provides comprehensive technical support and
documentation for all NETCONNECT Category 6A products, including
this advanced UTP cable. The network cable is backed by CommScope's
global quality assurance program and manufactured under stringent
environmental compliance standards. Technical resources include
installation guidelines, performance specifications, and
compatibility information to ensure successful deployment in
various network environments.
Frequently Asked Questions
What is the key advantage of Category 6A over Category 6?
Category 6A cables support twice the frequency (500 MHz vs. 250
MHz) and are specifically engineered for 10-Gigabit Ethernet
applications up to 100 meters, with significantly improved alien
crosstalk performance for high-density installations.
Can this UTP cable be used in high-interference environments?
Yes, this Category 6A UTP cable features advanced pair isolation
and twist technology that provides excellent noise immunity, making
it suitable for most commercial environments without requiring
shielded construction.
What makes this cable suitable for PoE applications?
The 23 AWG conductors provide lower DC resistance, reducing power
loss over distance, and the cable is tested and certified for
compliance with IEEE 802.3bt (Type 4) high-power PoE standards.
Is special termination required for Category 6A performance?
While standard RJ45 connectors can be used, optimal performance
requires Category 6A rated connectors and jacks that maintain the
cable's enhanced transmission characteristics throughout the
channel.
Installation & Usage Notes
When installing this Category 6A UTP cable, maintain proper bend
radius guidelines to preserve transmission performance. The network
cable should be installed away from strong sources of
electromagnetic interference when possible. For 10-Gigabit
applications, ensure all connecting hardware (jacks, patches,
connectors) is rated for Category 6A performance to maintain
channel specifications. The UTP cable is designed for horizontal
cabling applications and should be tested according to relevant
standards to verify performance parameters.
